2009/06/03 劉錦燕M9713910
Mark Goulthorpe
SCOTT POINT: EXPLORING PRINCIPLES OF DIGITAL CREATIVITY
DECOI Mark Goulthorpe (1963)
University of Liverpool, B.Arch., 1987; University of Liverpool,
B.A., 1984 Richard Meier & Partners, 1988–91
DECOI STRUCTURE Director
Mark GoulthorpeTen years of experience of
working at the highest level, four years with Richard Meier (RIBA Gold Medal,
Pritzker Prize) before establishing dECOi in 1991. Has consulted for Sir Norman
Foster (RIBA Gold Medal). Extensive experience of working abroad (Europe,Asia,
USA), teaches and lectures internationally, numerous international awards.
Staff
3 -5 Assistant Architects dECOi recruits
international staff of exceptional calibre who come to us for the reputation we
have established. Our committment to developing new technology means that wehave
a highly skilled team of CAD operators. All can travel, all speak English.
2 -3 Student Interns DECOI is committed to
giving an on-going apprenticeship to students of architecture
Parametric
Design
Prof Mark Burry AustraliaThe world's leading
parametric architectural modellor, he has assisted extensively in the
construction of the Sagrada Familia (Gaudi, Barcelona), and on the Bilbao
Guggenheim(Gehry), and currently works with us particularly on our work with
Foster & Partners.
Mathematics D
r Alex Scott UK One of the leading
solid-geometry mathematicians, Alex helps us to derive complex shapes
formulaically such that we can understand their surface and construction
properties and develop accurate working drawings from a rigorous mathematical
base.
Systems
Manager
Laurence Stern France A design architect with extensive experience at
developing architectural computer systems (responsible for setting up the CAD
networks at Calatrava-Valls, Vasconi, Design Realization, etc).
DECOI Mark Goulthorpe (1963)
University of Liverpool, B.Arch., 1987; University of Liverpool,
B.A., 1984 Richard Meier & Partners, 1988–91
TEACHING
2002 MIT
2000-2001 l'Ecole Speciale, Paris, FRANCE
Visiting Digital Design Professor
1999-2000 The University of Lubljana, Slovenia
Visiting Design Professor
1998-1999 The University of Kassel, Germany
Digital Design Tutor
1995-1996 The Architectural
Association, London, UK Unit Master Intermediate Unit 2
DESIGN COMPETITIONS AWARDS
2004 Ars Electronica Commendation, Germany
2003 FEIDAD International Digital Design Award,
Taiwan
2003 British Design Council 'Sharing Technology'
Award, UK
2003 NESTA 'Technology' Award,, UK
2001 FEIDAD International Digital Design
Competition First Prize, Taiwan
1999 Gateway to the South Bank Competition
Second (Peoples') Prize, London UK
1999 Birmingham Hippodrome Interactive Art
Competition First Prize, Birmingham UK
1995 NARA/TOTO World Architecture Triennale
First Prize, Tokyo, JAPAN
1994 Glasgow Tower Competition Commendation,
Glasgow, SCOTLAND
1993 La Casa piu' Bella del Mondo Second Prize:
'jANUS House', Milan, ITALY
1992 NARA/TOTO World Architecture Triennale
Third Prize: Tokyo, JAPAN
1991 Another Glass House Competition First Prize
: New York, USA
1991 EUROPAN II Housing Competition First Prize:
Rhodes, GREECE
DECOI Mark Goulthorpe (1963)
University of Liverpool, B.Arch., 1987; University of Liverpool,
B.A., 1984 Richard Meier & Partners, 1988–91
DISTINCTIONS / AWARDS
2007 BIO, Boston
Convention Center, USA -HypoSurface 2.0 prototype
2006 IMTS, McCormick
Place, Chicago, USA-HypoSurface 1.0 prototype
2005 MIT Media Lab, USA
-HypoSurface VI 2005 Cramer 'Technology Day', USA -HypoSurface VI
2004 Imagination, London
UK -HypoSurface V
2004 Ars Electronica,
Germany-HypoSurface V (single module)
2002 Venice Biennale The
French Pavilion, Venice, Italy-HypoSurface V
2001 Sharing Technology
Award Design Council,UK
2000 Venice Biennale The
International Pavilion, Venice, ITALY -HypoSurface III
2000 Technology Innovation
Award NESTA, London, UK
1999 Young Architect of
the Year Award Second Prize , BD Journal / British Steel
1996 Venice Biennale 'le
Bloc Fracturee' The French Pavilion, Venice, ITALY
1996 Architects on the
Horizon AD Journal / RIBA, London, UK
1993 Les Albums de la
Jeune Architecture French Ministry of Culture, Paris, FRANCE
1993 Young Architects
Forum Architectural League of New York, USA
1991 Royal Academy Award
Royal Academy, London, UK

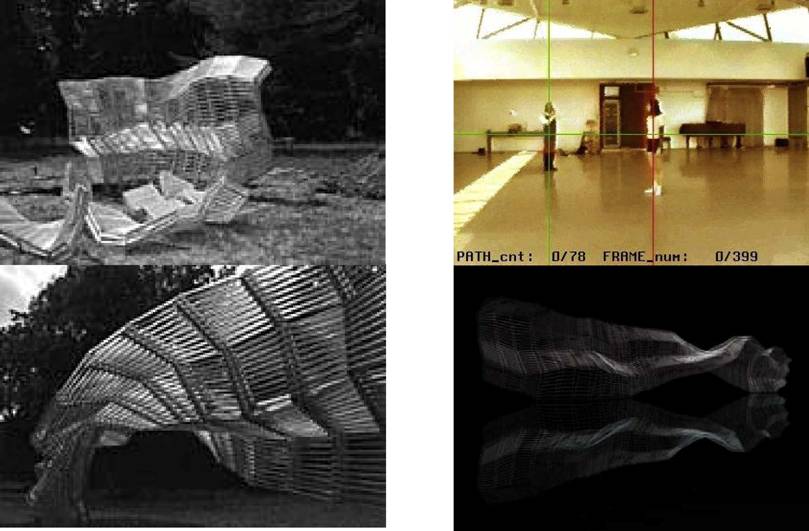

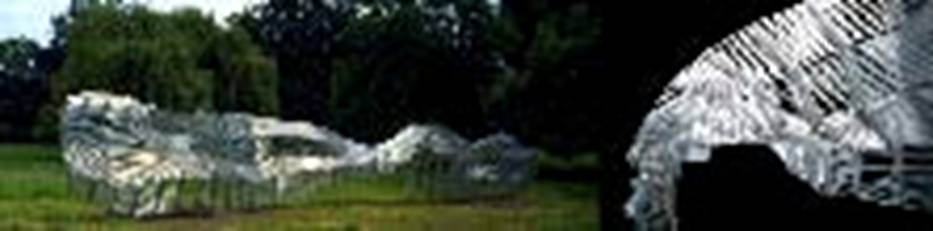

ETHER/I
UN 50th Anniversary Exhibition, Geneva, 1995
Design: Mark Goulthorpe, Zainie Zainul, Wilf Sinclair, Rachel
Doherty, Matthieu le Savre Computer Modelling: Laurence Stern Dancers: Joni
& Jacopo, The Frankfurt Ballet Engineering: David Glover of Group IV Ove
Arup & Partners, London Fabrication: Optikinetics, UK
conceived for the 50th anniversary of the united nations in geneva,
the project is a frozen trace of a disappearing dance (a duet) -a capture of
movement or differance. materialized as a double tessellated surface of
aluminium, both structure and surface, alternately ephemeral or visceral, benign
or aggressive, the piece celebrates the potential offered by computer
genera(c)tion, the 4000 non-standard components cut and welded with accuracy.

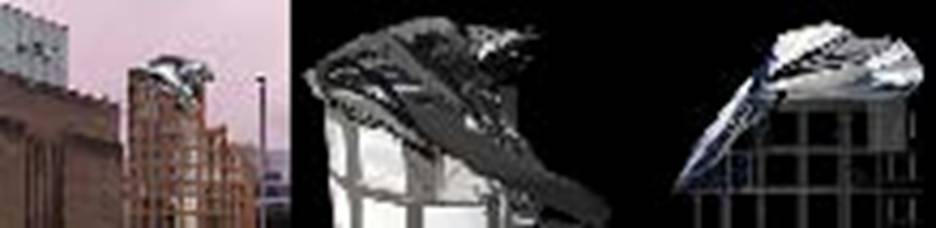

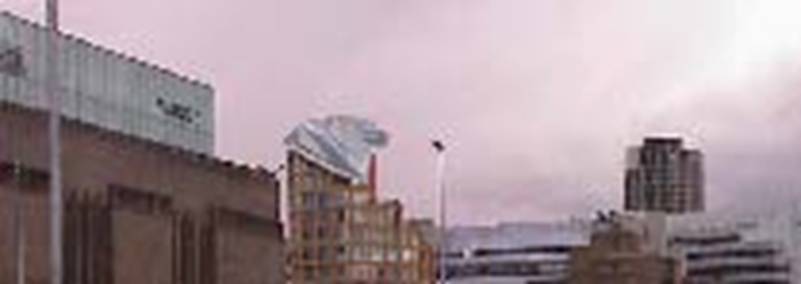

Bankside Paramorph extension to a towertop appartment in Bankside,
London ,2002
computer modelling processes. design team: mark goulthorpe, matteo
grimaldi, julian lomessy. parametric design: mark burry, grant dunlop, andrew
maher, greg more. engineers: david glover and ed clark
ovearup&partners.mathematics: keith ball, alex scott.
The project looks to establishing principles of
a radical new spatial potential, trapping movement in 3d form
('geological formation') a revised attitude to CAD modelling, using
multi-layered techniques ('dirty digital') a revolution in fabrication protocols
('a collapse of contractor space')
Bankside Paramorph extension to a towertop appartment in Bankside,
London ,2002
Creative
Process: negotiates the complex
formal and techical constraints: -an awkward stepped spiralling towertop site -a
client request for views in all directions -the ability to nuance thermal
performance (in respect of stringent Building Regulations) -a need to modulate
its structural form (to respond to an unknown structural capacity) -the need for
a lightweight prefabricated construction logic (to avoid nuisance to the
occupants)
Bankside Paramorph extension to a towertop appartment in Bankside,
London ,2002

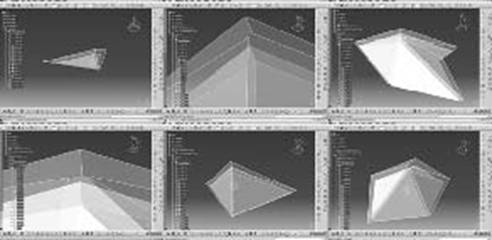

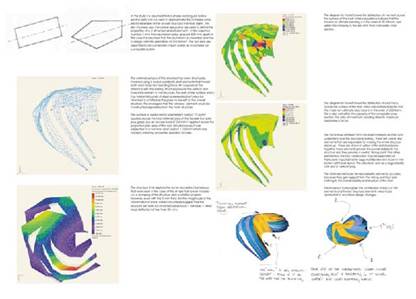

Computer Modeling:
Latterly the project has been modelled in Bentley’s new ‘Generative Components’software, which gave a simple parametric model
that could allow global variancy of the form: a central axis that can be
displaced like a joystick gives a malleability to the basic form; all elements
can then be twisted differentially around this axis to vary the facetting. Each
of the legs can be varied locally to open view or deepen the structural form.
Currently we have moved to modelling the form in CATIA where we are
concentrating on the detailed level of articulation. Here we combine parametric
modelling with scripting to speed the generation of meta-components (the legs
and their associated glazing are built automatically via a generative script),
prioritizing the quadrilateral glazing panels and measuring their discrepancy
from the ideal complex-curved base ‘blob’. We are currently using these to produce
prototype assemblies that will be tested for their performance by Arup.
Bankside Paramorph extension to a towertop appartment in Bankside,
London ,2002

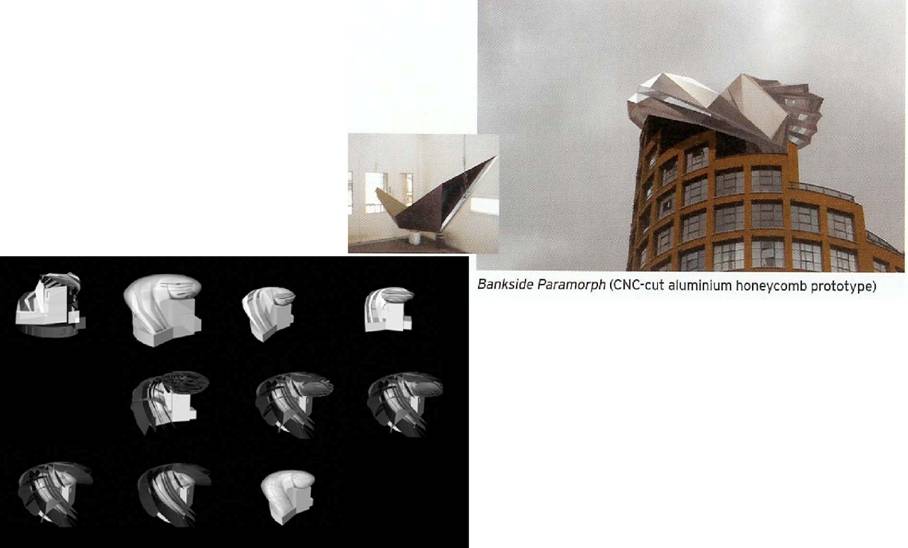

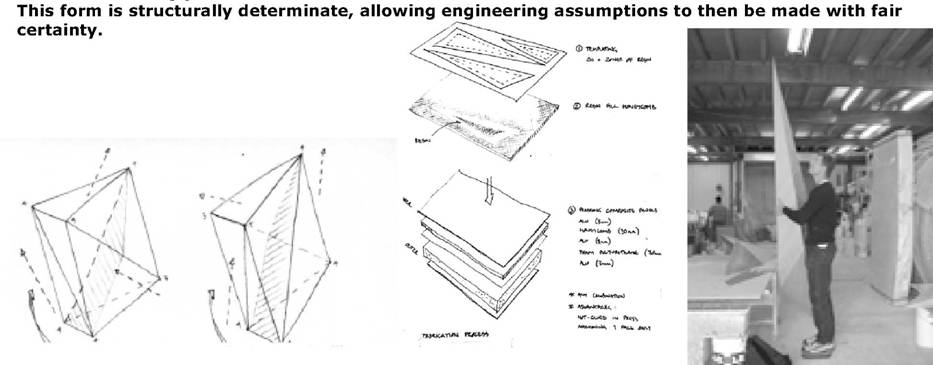

Fablication Logic:
CNC Machining / Assembly The issue in machining a series of flat
panels is to be able to cheaply cut flat swathes at the bevelled edges, rather
than using a drill-head. Eurocomposites have developed flat propellor-like
cutting discs for high-speed planar cutting of their resin-filled aluminium
honeycombs, and we deployed their expertise in the creation of the first
prototypes. Our CAD files give the accurate 3d form of every triangular panel,
which is simply machined using a large 5-axis CNC machine. We have articulated
the project into a series of topologically-variable boxes, six-sided triangular
sleeves with a triangular top and bottom: this gave Arup a basic
‘module’which, when given an
internal stiffening plane, offered two pyramids.
certainty.

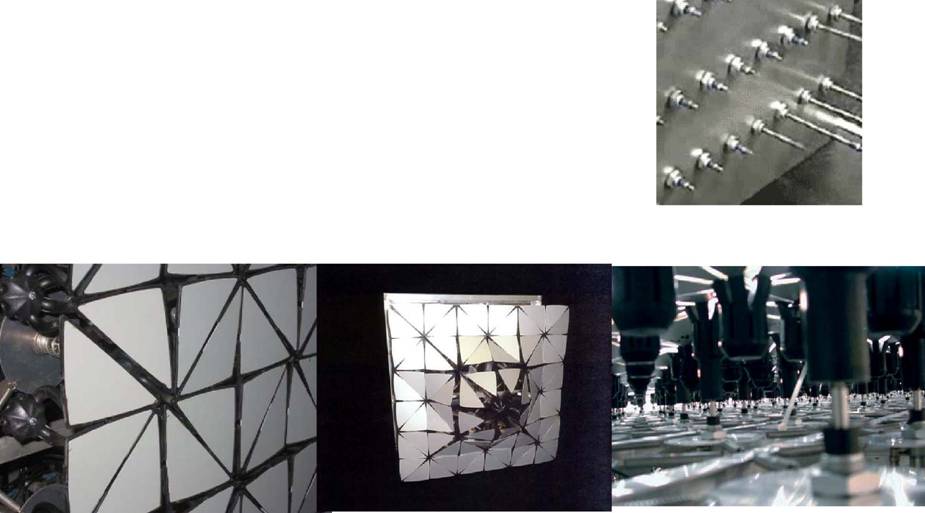

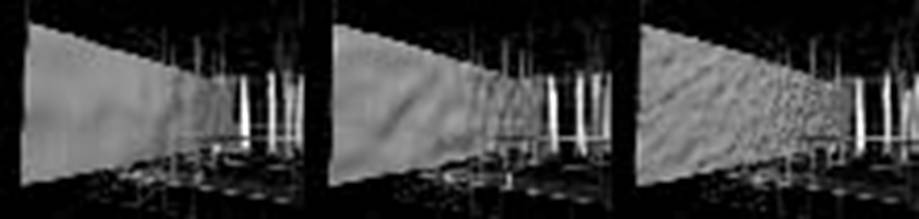

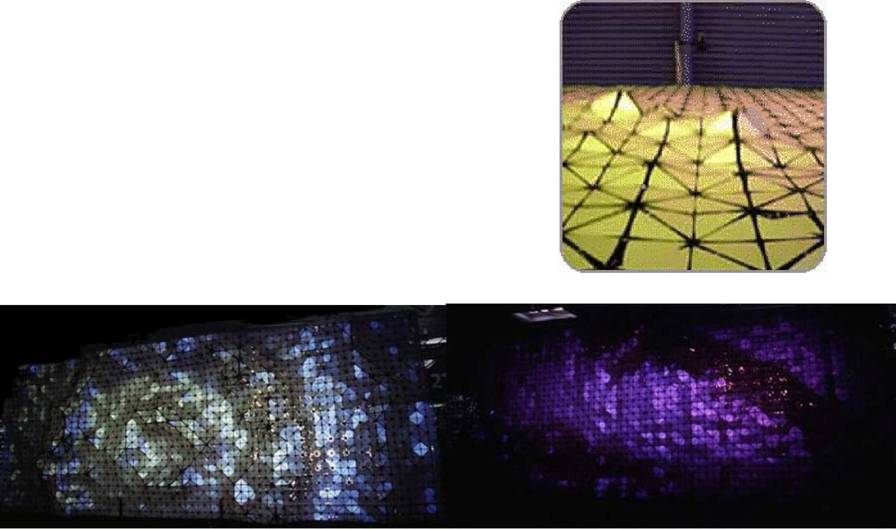

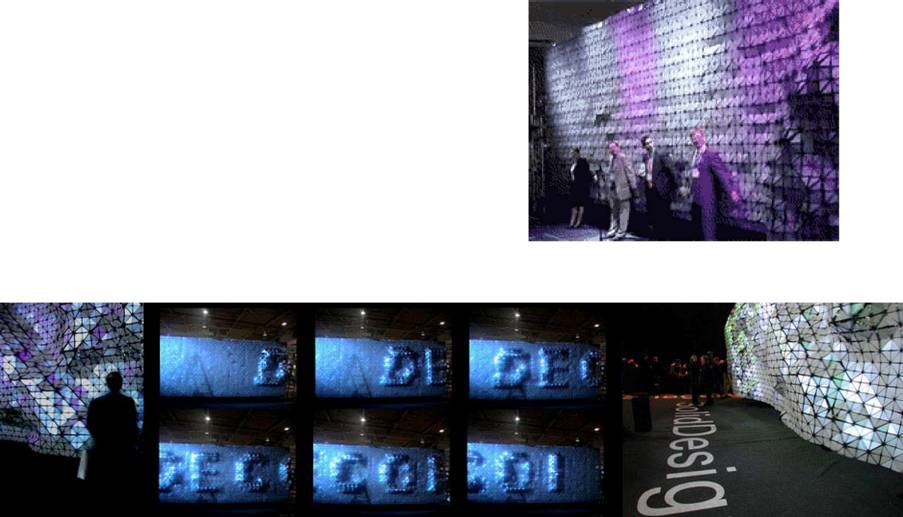

AEGIS HYPOSURFACE©
Birmingham, UK, 1999-2001
Client: The
Birmingham Hippodrome Theatre
Concept: Mark
Goulthorpe of dECOi Architects
Design Team: Mark
Goulthorpe, Prof. Mark Burry, Oliver Dering, Arnaud Descombes
Design/Implementation:Prof. Mark Burry, The School of Architecture & Building, Deakin
University, Australia with Grant Dunlop
Mathematics and Programming: Dr Alex Scott, University College London; Peter Wood, Victoria
University of Wellington, NZ; Xavier Robitaille, University of Montreal, Canada
System Engineering/Design: Prof. Saeid Navahandi, Dr Abbas Kouzani, Intelligent Systems Research
Group, The School of Engineering & Technology, Deakin University, Australia
Mathematics: Dr
Alex Scott, Prof. Keith Ball, University University College London
Engineering: David
Glover of Group IV, Ove Arup & Partners, London, UK
Facade Consultant:
Sean Billings of Billings Design Associates, Ireland
Rubber Research:
RAPRA, UK, Burton Rubber, UK
Adhesive Research:
Loctite Ltd, UK
Pneumatic Systems/Fabrication: Univer Ltd, Bradford, UK
Facet Manufacture:
Spanwall Ltd, Ireland
Sponsorship:
National Endownment for Science, Technology and the Arts (NESTA), UK,The Arts
Council, UK
Art Consultant: Vivien Lovell of Modus Operandi, formerly the Public Art Commissions Agency (PACA)
Birmingham, UK, 1999-2001 Birmingham, UK, 1999-2001 Birmingham, UK,
1999-2001 Birmingham, UK, 1999-2001

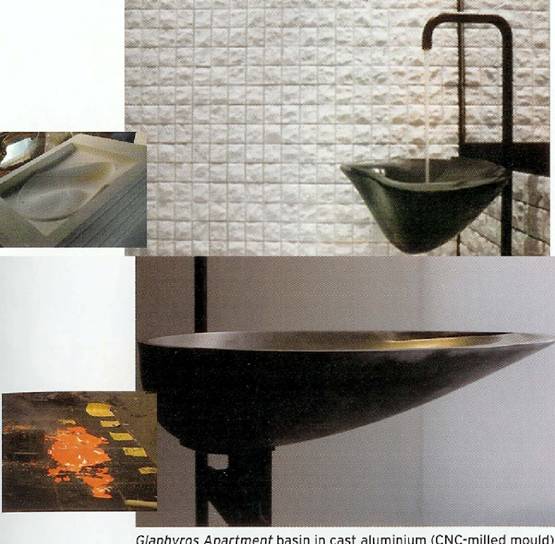

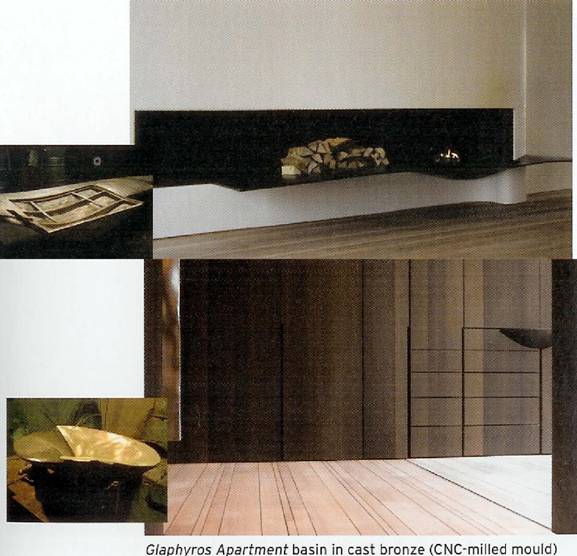

Glaphyros Apartment
Paris,
2003

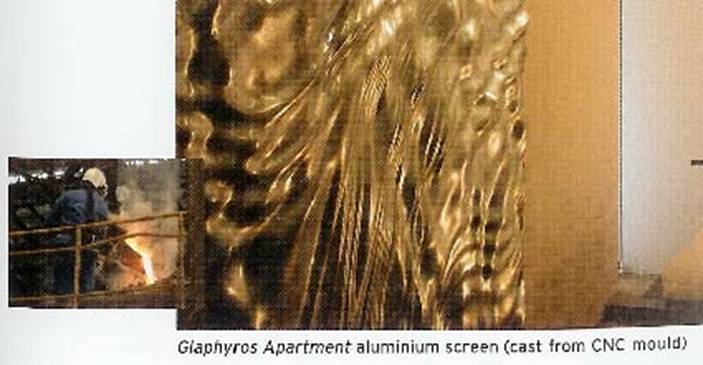

One of dECOi's few built projects, the Glaphyros apartment in Paris,
completed in 2003, features an 8-by-6-foot aluminum screen whose form is based
on a mathematically generated algorithm of three intersecting waves.

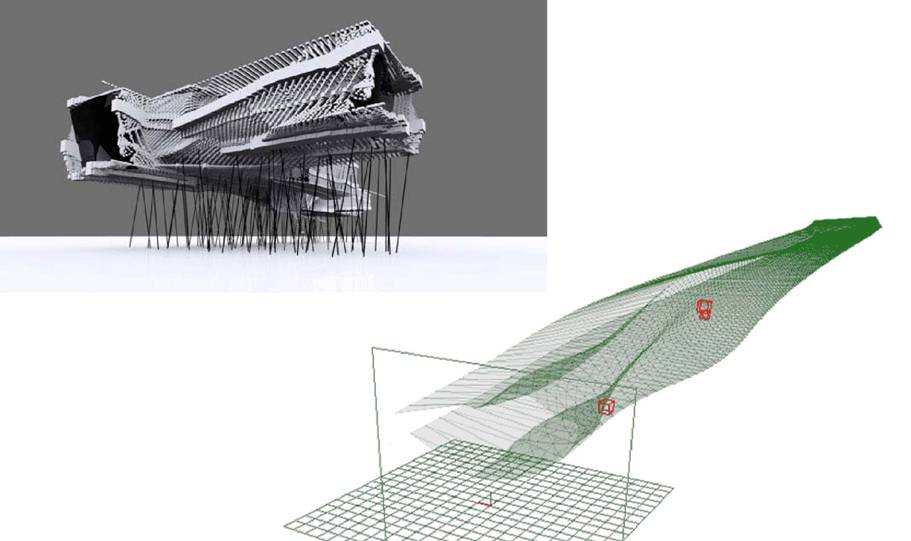

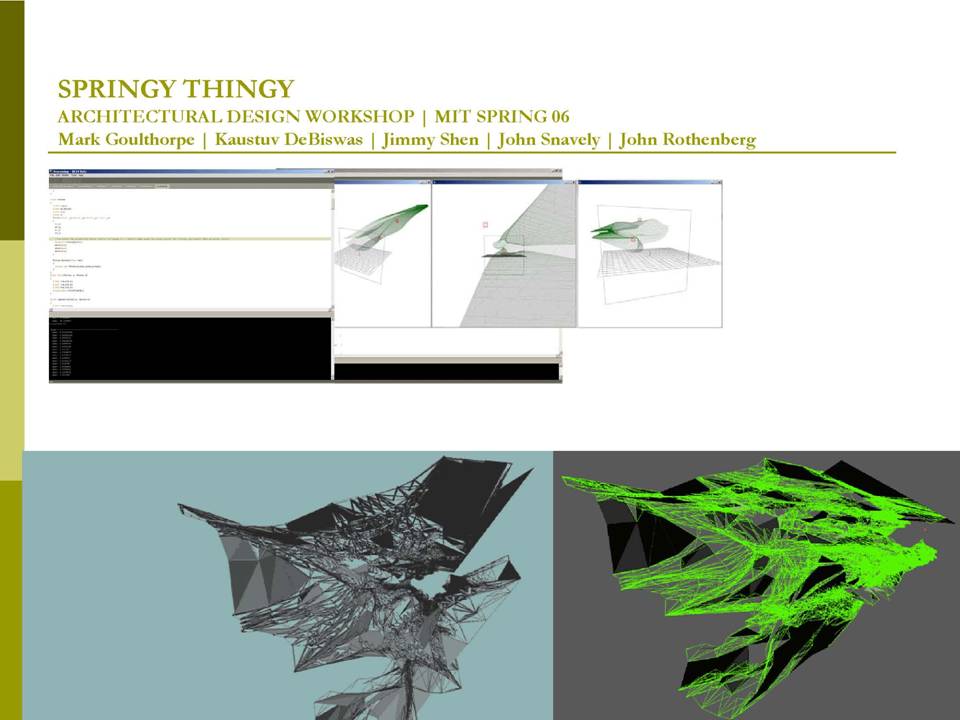

SPRINGY THINGY
ARCHITECTURAL DESIGN WORKSHOP | MIT SPRING 06 Mark Goulthorpe |
Kaustuv DeBiswas | Jimmy Shen | John Snavely | John Rothenberg

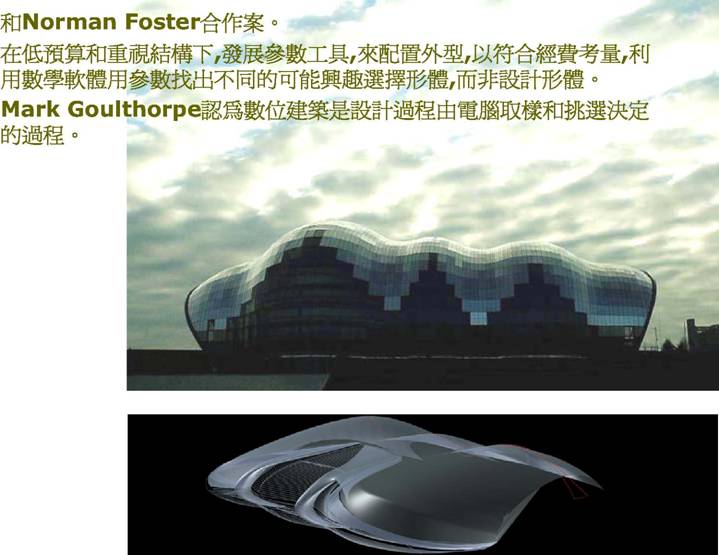

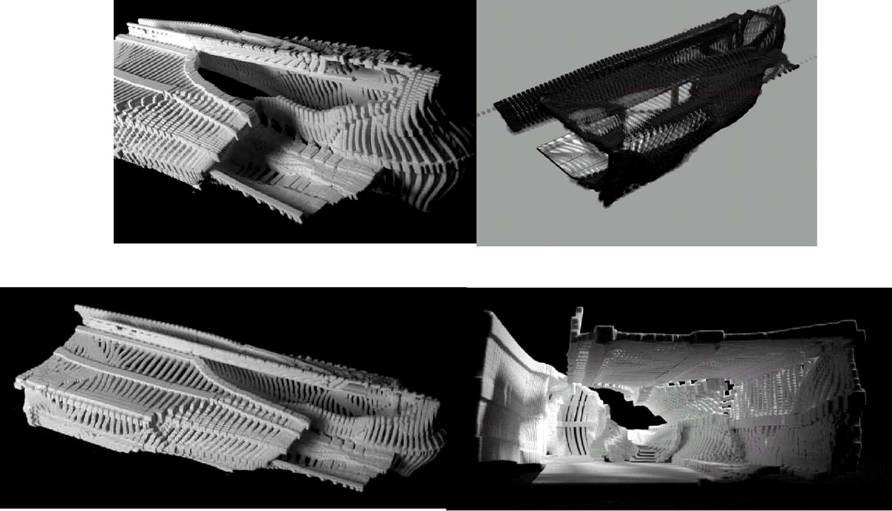

Music Centre, Gateshead, 1998
參考資料:
http://www.hyposurface.org/
http://synchronousobjects.osu.edu/blog/2009/04/interdisciplinary-voices-1/
http://loop.ph/bin/view/Openloop/HyperSurfaceTheory#Aegis
http://www.membrana.ru/articles/technic/2007/08/03/232700.html
http://web.mit.edu/mg_decoi/www/bankside/index02.html
http://www.hyposurface.org/BIO.pdf
http://www.particles.de/paradocs/decoi/index.html
http://forgemind.net/xoops/modules/news/index.php?storytopic=21&start=70
參考書籍:
Branko Kolarevic, ed.—《Architecture in the Digital Age: Design and Manufacturing
》
-Mark Goulthorpe / scott points:exploring principles of digital
creativity
Mark Goulthorpe —《The possibility of (an) architecture: collected
essays》
